ASHPANS

Ash pans are perfect for collecting the ash under your fire grate but the correct size needs to be selected. The size of ash pan that’s needed will depend on the size of the grate, particularly the width at the front and back of the grate and the depth. If the fire grate has legs then it is important to only measure the width between the legs. If you do this right you can ensure that the ashpan fits snugly beneath the grate, collecting all the ash from the fire.

Latest Products

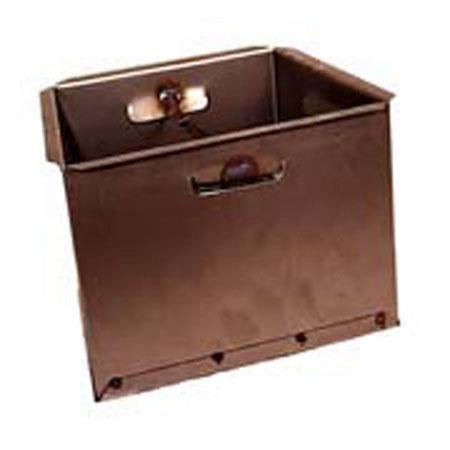

16" Baxi Lift Out

Code: A001
Width: 290mm
Height: 212mm
Depth: 190mm
Taper: 210mm

18" Baxi Lift Out

Code: A002
Width: 360mm
Height: 212mm
Depth: 190mm
Taper: 250mm

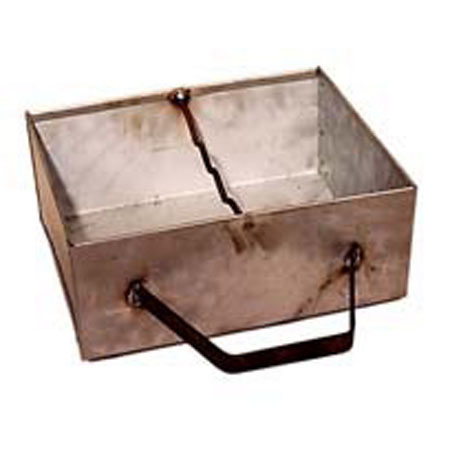

16" Baxi Outside

Code: A003
Width: 290mm
Height:212mm
Depth: 190mm
Taper: 210mm

18" Baxi Outside

Code: A004
Width: 262mm
Height:135mm
Depth: 265mm
Taper: 262mm

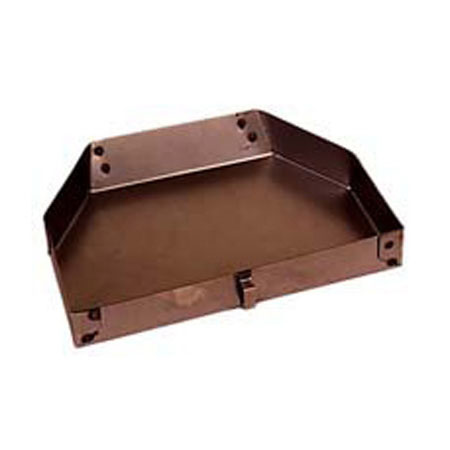

16" Queenstar

Code: A005
Width: 295mm
Height:45mm
Depth: 212mm
Taper: 180mm

18" Queenstar

Code: A006
Width: 347mm
Height:45mm
Depth: 245mm
Taper: 190mm

16" Grant

Code: A007
Width: 300mm
Height:45mm
Depth: 325mm
Taper: 300mm

18" Grant

Code: A008
Width: 357mm
Height:45mm
Depth: 330mm
Taper: 357mm

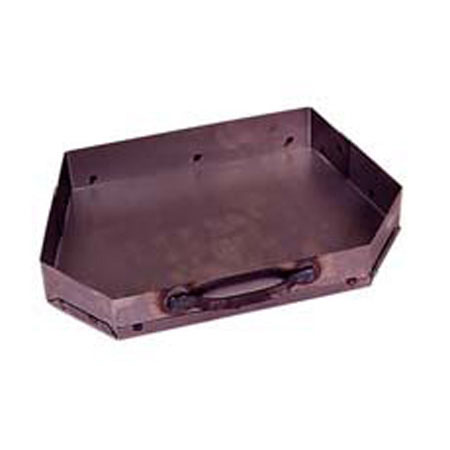

16" Classic

Code: A009
Width: 310mm
Height:45mm
Depth: 200mm
Taper: 235mm

18" Classic

Code: A010
Width: 360mm
Height:50mm
Depth: 210mm
Taper: 240mm

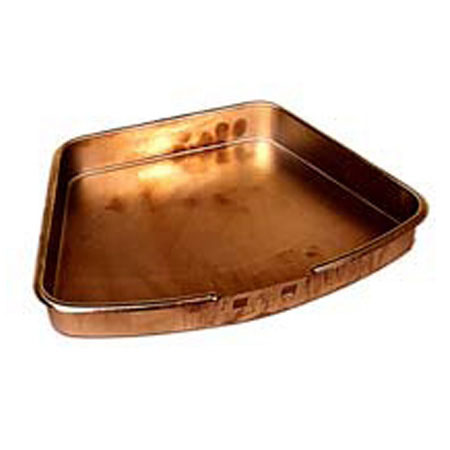

General Purpose 1

Code: A011
Width: 315mm
Height:40mm
Depth: 235mm
Taper: 200mm

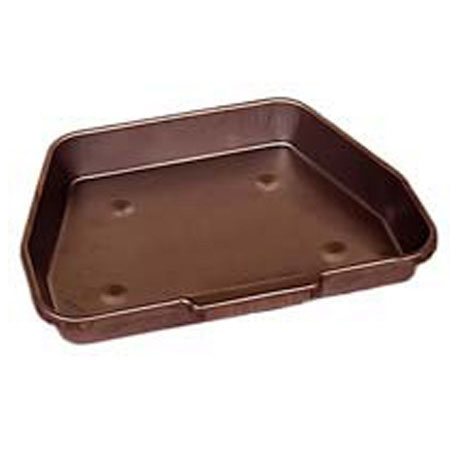

General Purpose 2

Code: A012
Width: 280mm
Height:40mm
Depth: 215mm
Taper: 190mm

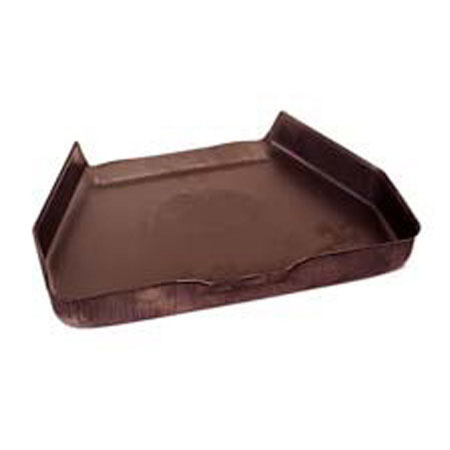

16" Regal

Code: A013
Width: 310mm
Height:40mm
Depth: 240mm
Taper: 180mm

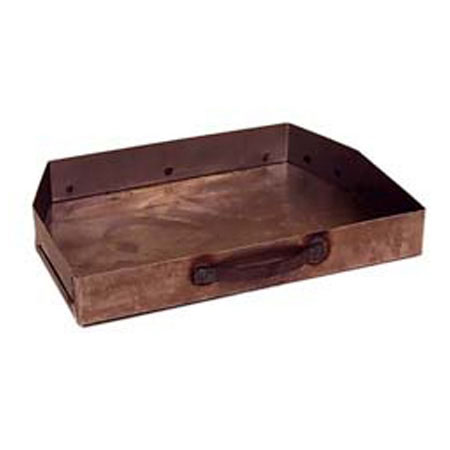

18" Regal

Code: A014
Width: 310mm
Height:40mm
Depth: 240mm
Taper: 180mm

16" Enterprise

Code: A016
Width: 350mm
Height:60mm
Depth: 280mm
Taper: 350mm

18" Enterprise

Code: A017
Width: 400mm
Height:60mm
Depth: 380mm
Taper: 400mm

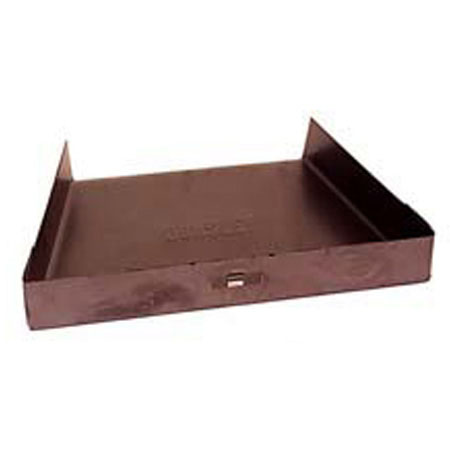

16" Firefly

Code: A018
Width: 320mm
Height:50mm
Depth: 200mm
Taper: 218mm

18" Firefly

Code: A019
Width: 375mm
Height:50mm
Depth: 200mm
Taper: 270mm

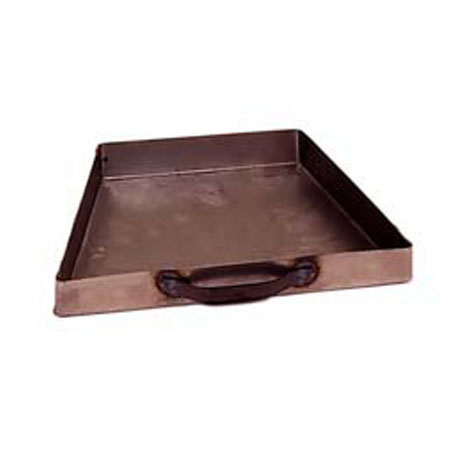

16" AL

Code: A020
Width: 285mm
Height:40mm
Depth: 200mm
Taper: 185mm

18" AL

Code: A021
Width: 350mm
Height:45mm
Depth: 200mm
Taper: 230mm

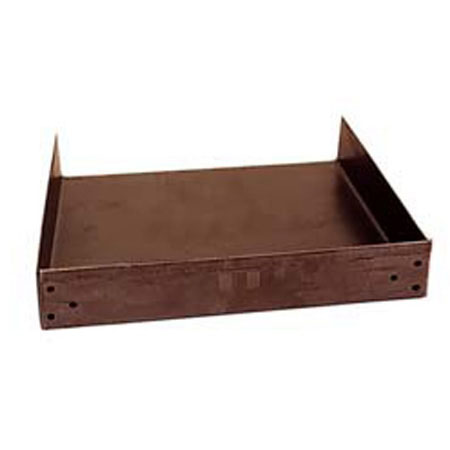

16" Paragon

Code: A022
Width: 280mm
Height:45mm
Depth: 200mm
Taper: 235mm

18" Paragon

Code: A023
Width: 330mm
Height:45mm
Depth: 200mm
Taper: 270mm

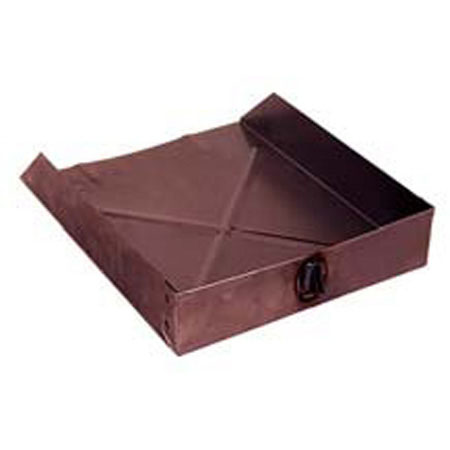

Consort 111

Code: A024
Width: 300mm
Height:70mm
Depth: 365mm
Taper: 300mm

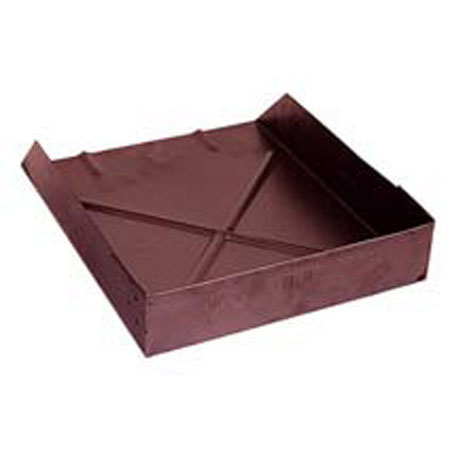

Parkray G111

Code: A025
Width: 300mm
Height:70mm
Depth: 365mm
Taper: 300mm

Consort 88/99

Code: A026
Width: 300mm
Height:65mm
Depth: 370mm
Taper: 300mm

Parkray G88/99

Code: A027
Width: 300mm
Height:65mm
Depth: 365mm
Taper: 300mm

Consort 66/77

Code: A028
Width: 300mm
Height:60mm
Depth: 290mm
Taper: 300mm

Parkray G66

Code: A029
Width: 300mm
Height:60mm
Depth: 290mm
Taper: 300mm

Parkray G77

Code: A030
Width: 300mm
Height:60mm
Depth: 327mm
Taper: 300mm

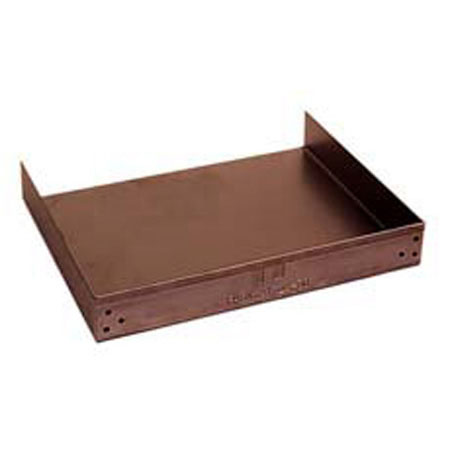

Parkray 29/30

Code: A031
Width: 325mm
Height:45mm
Depth: 250mm
Taper: 325mm

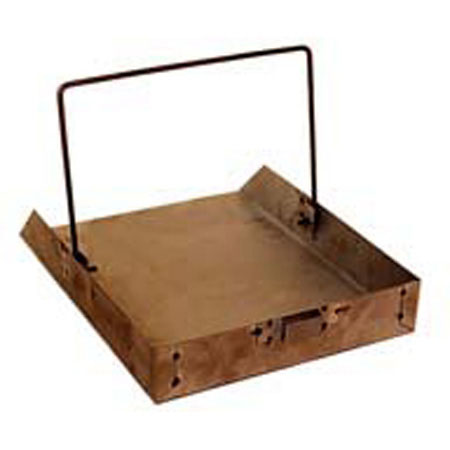

Parkray R21

Code: A033
Width: 262mm
Height:65mm
Depth: 375mm
Taper: 262mm

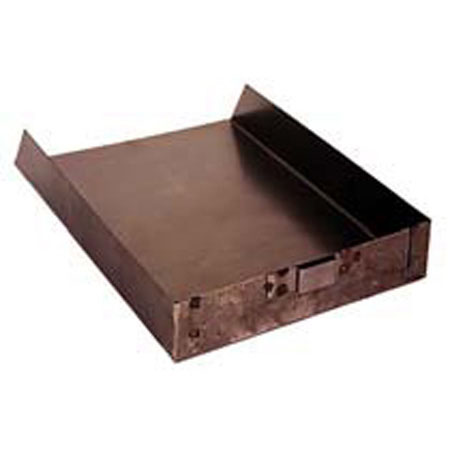

Parkray R19

Code: A034
Width: 262mm
Height:62mm
Depth: 370mm
Taper: 262mm

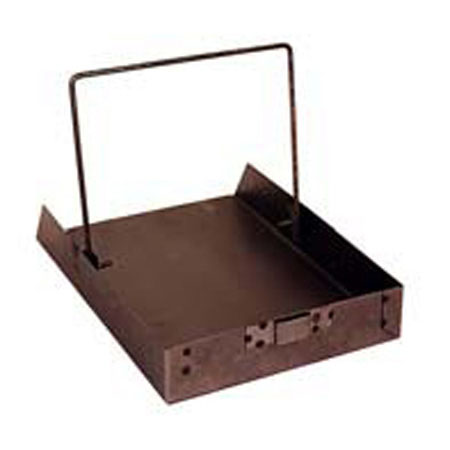

Parkray Supreme

Code: A035
Width: 297mm
Height:65mm
Depth: 382mm
Taper: 297mm

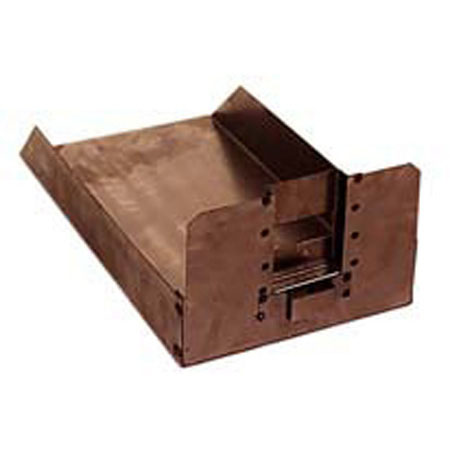

Rayburn MF

Code: A036
Width: 222mm
Height:65mm
Depth: 400mm
Taper: 222mm

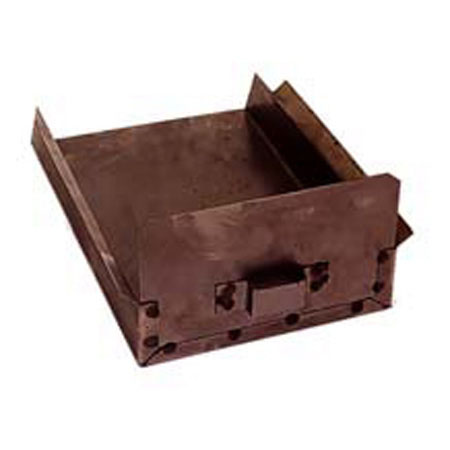

Rayburn Regent

Code: A037
Width: 220mm
Height:67mm
Depth: 310mm
Taper: 220mm

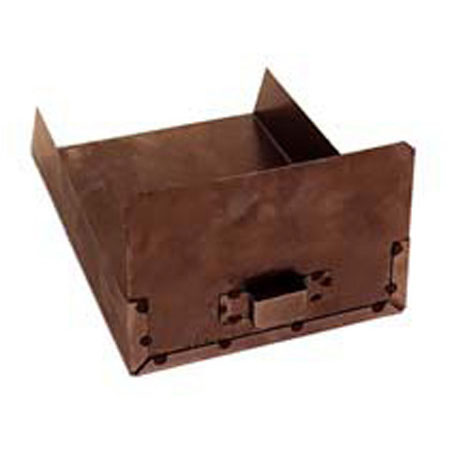

Rayburn Royal

Code: A038
Width: 210mm
Height:70mm
Depth: 225mm
Taper: 210mm

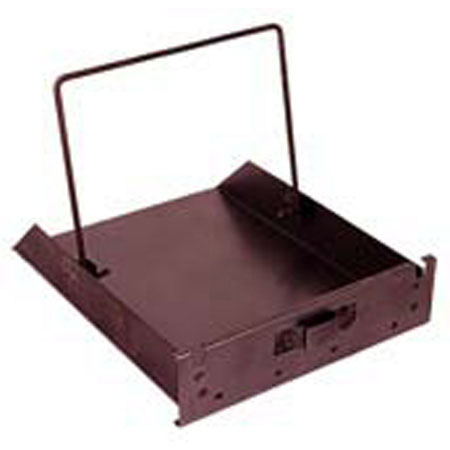

Rayburn 80/23

Code: A039
Width: 295mm
Height:60mm
Depth: 355mm
Taper: 270mm

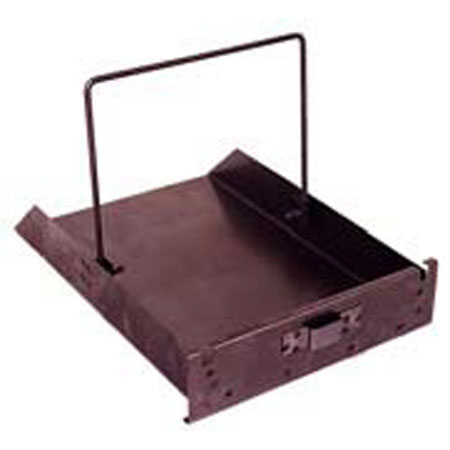

Rayburn 80/30/39

Code: A040
Width: 295mm
Height:60mm
Depth: 400mm
Taper: 270mm

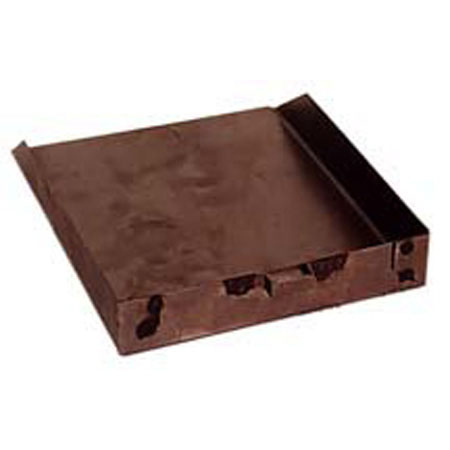

Little Wenlock MK1

Code: A041
Width: 195mm
Height:40mm
Depth: 240mm
Taper: 195mm

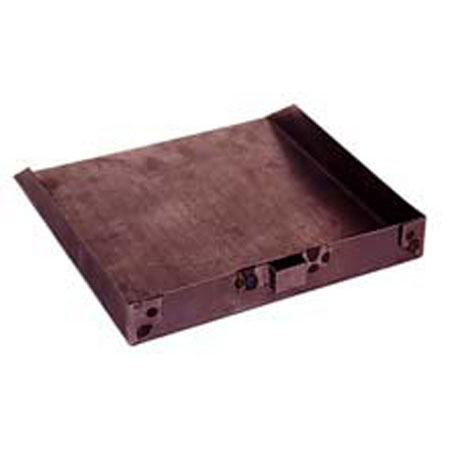

Little Wenlock MK2

Code: A042
Width: 245mm
Height:40mm
Depth: 255mm
Taper: 245mm

16" Rayburn ROF

Code: A042
Width: 360mm
Height:40mm
Depth: 241mm
Taper: 245mm

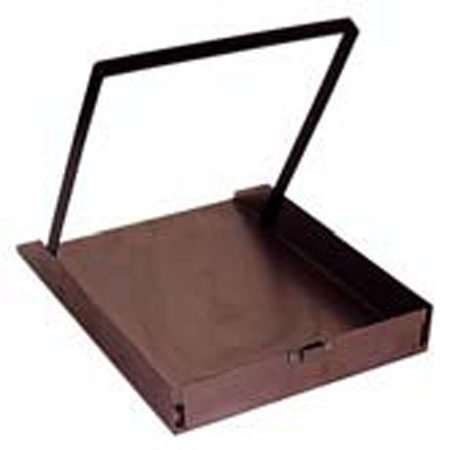

Trianco TRH

Code: A047
Width: 315mm
Height:60mm
Depth: 420mm
Taper: 315mm

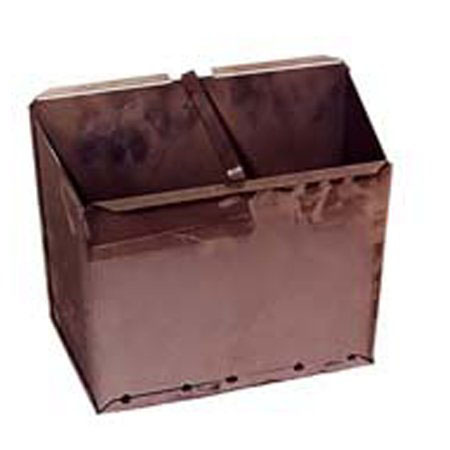

Super Draught

Code: A049
Width: 290mm
Height:230mm
Depth: 165mm
Taper: 250mm

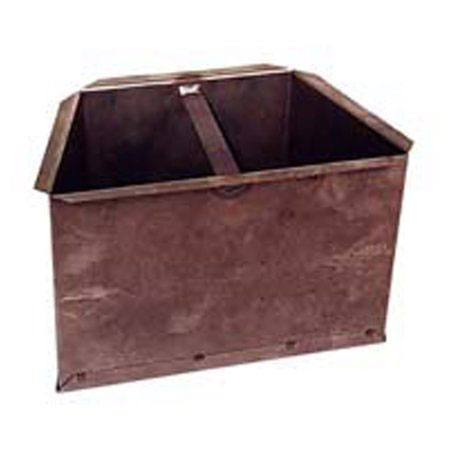

16" Bell

Code: A050
Width: 310mm
Height:200mm
Depth: 185mm
Taper: 200mm

18" Bell

Code: A051
Width: 340mm
Height:200mm
Depth: 200mm
Taper: 230mm

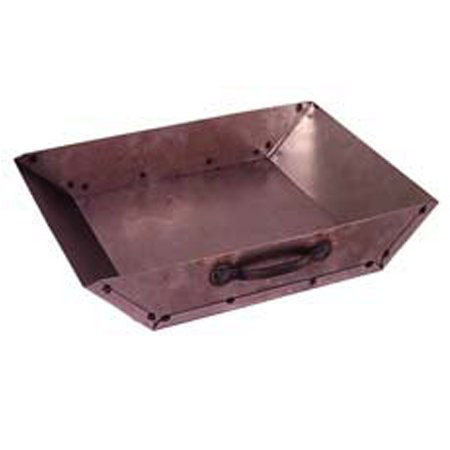

Small Dog

Code: A052
Width: 315mm
Height:50mm
Depth: 220mm
Taper: 315mm

Large Dog

Code: A053
Width: 385mm
Height:70mm
Depth: 290mm
Taper: 385mm

16" Valencia

Code: A055
Width: 432mm
Height:75mm
Depth: 225mm
Taper: 432mm

18" Valencia

Code: A060
Width: 432mm
Height:75mm
Depth: 225mm
Taper: 432mm

21" Valencia

Code: A065
Width: 432mm
Height:75mm
Depth: 225mm
Taper: 432mm
